| Product introduct |

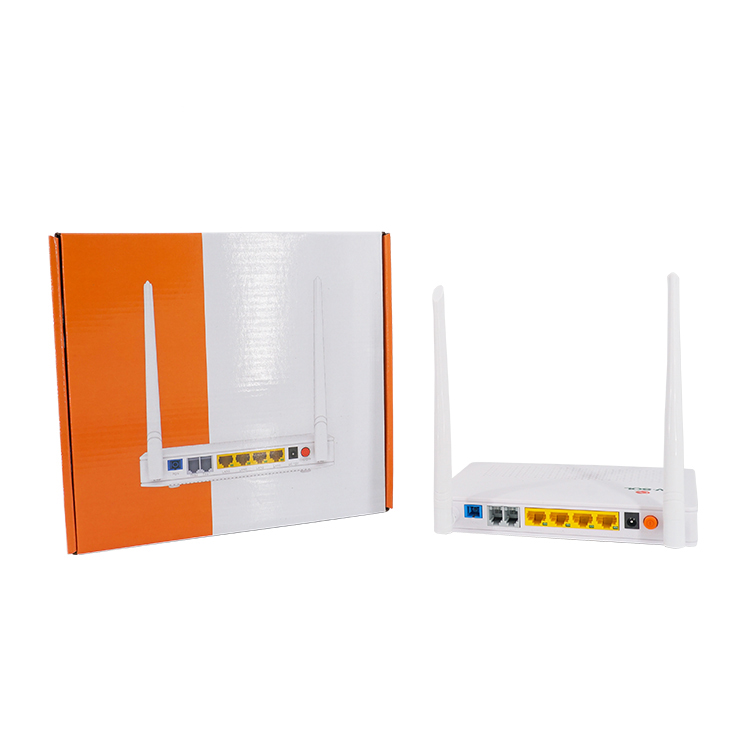

G/EPON 1GE+3FE+2POTS+WiFi+USB ONU support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function.
G/EPON 1GE+3FE+2POTS+WiFi+USB ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
| Technical parameters |
| Technical item | 1GE+3FE+2POTS+WiFi+USB |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving saturation:≥-8dBm Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| Wireless | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
| POTS interface | 2 FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909 |
| USB interface | USB 2.0 |
| LED | 13, For Status of PWR、PON 、LOS、WAN、WiFi、FXS1~2、ETH1~4、WPS、USB. |
| Operating condition | Temperature: -10℃～+55℃ Humidity: 5%～95%（non-condensing） |
| Storing condition |
Temperature : -40℃～+70℃ Humidity :5%～95%（non-condensing） |
| Power supply | DC 12V,1/1.5A |
| Power consumption | ≤10W |
| Dimension | 205mm×140mm×37mm（L×W×H） |
| Net weight | 0.34Kg |
