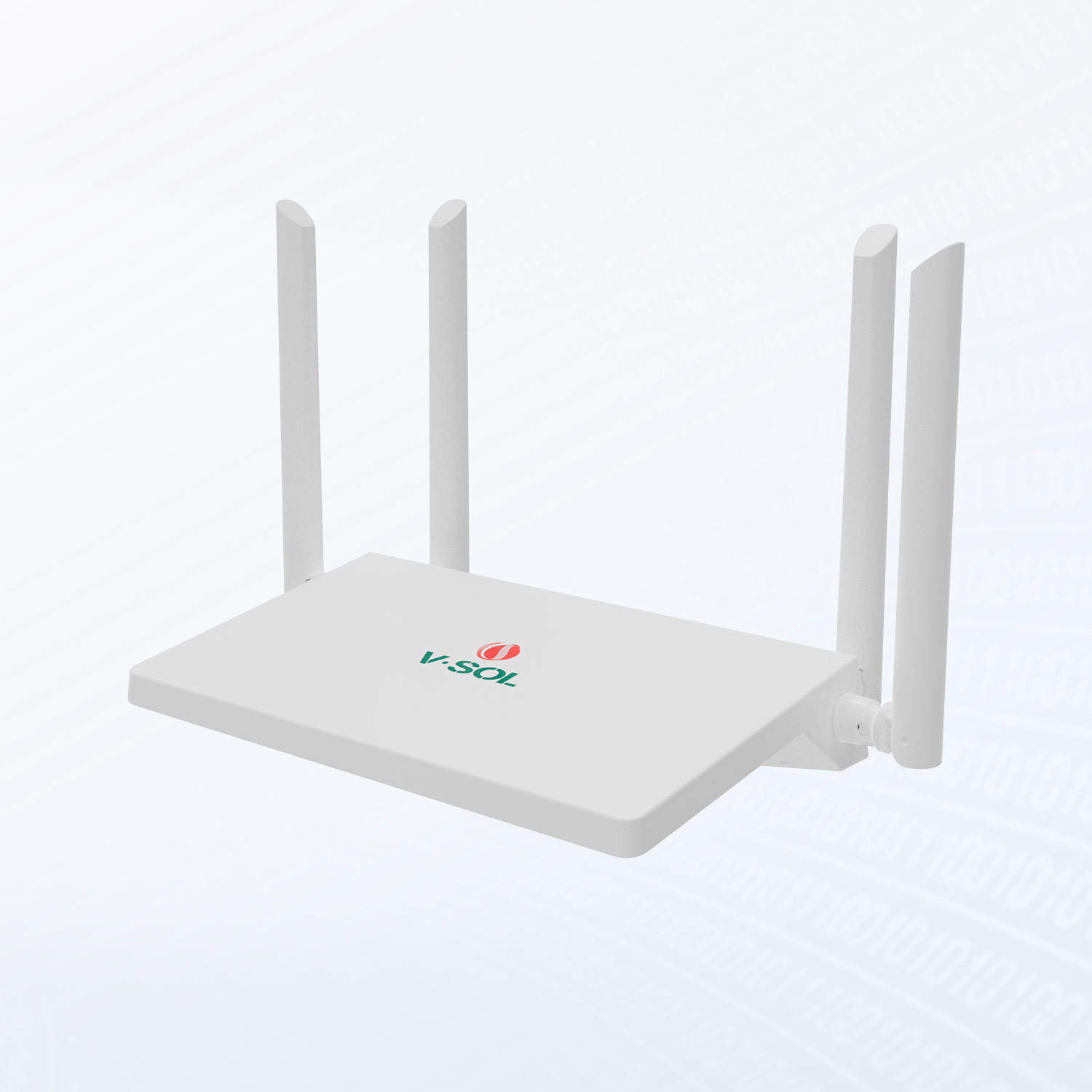

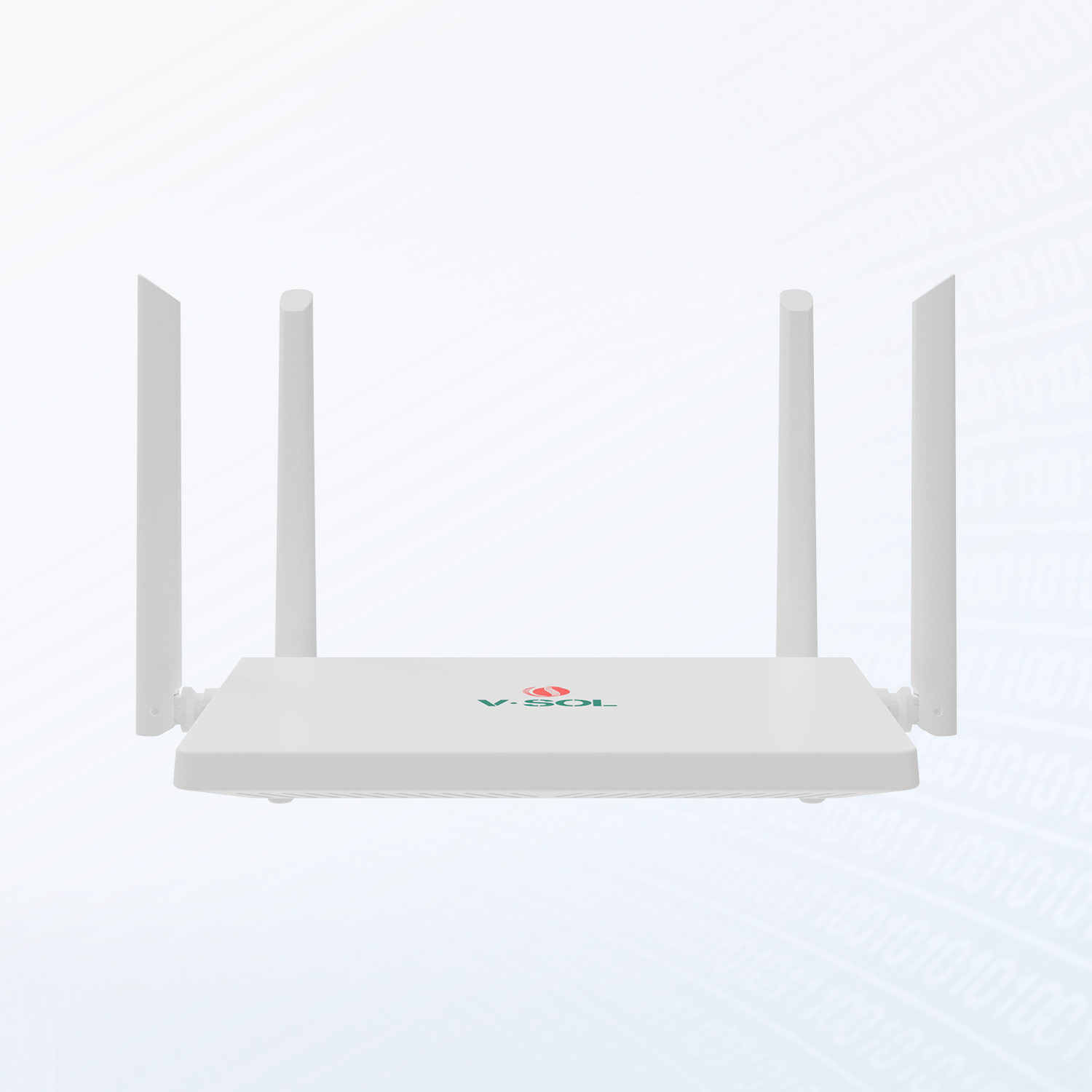

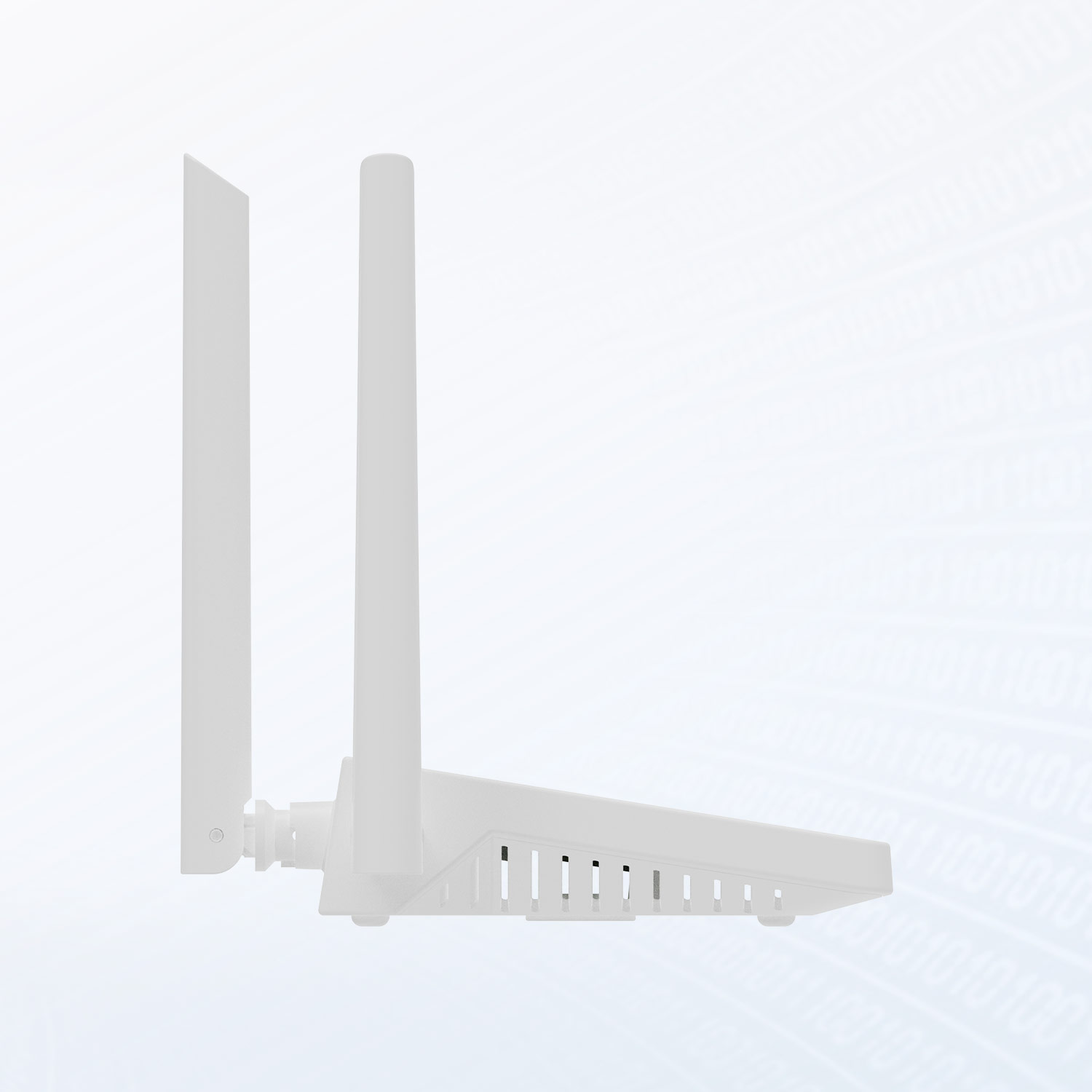

Двухдиапазонный гигабитный маршрутизатор WiFi6 AX3000
WiFi6 (AX3000) | 4*GE Port | Low Power | Compact
Сверхскоростной WiFi6 (AX3000)
Адаптивная функция WAN/LAN
Конструкция с низким энергопотреблением
Компактный, как мобильный телефон
Сеть MESH для широкого охвата
Интернет для детей без забот
|
Hardware Parameter |
|
|
Dimension |
179.9mm×104.1mm×30.8mm(L*W*H) |
|
Net weight |
185g |
|
Working condition |
Working temp: -30 ~ +60°C Working humidity: 5 ~ 95%(non-condensing) |
|
Storing condition |
Storing temp: -40 ~ +85°C Storing humidity: 5 ~ 95% (non-condensing) |
|
Power adapter |
DC 12V/1A |
|
Power supply |
≤12W |
|
Interface |
1GE WAN+3GE LAN+WiFi6 |
|
Indicators |
SYS |
|
Button |
Reset / WPS |
|
Interface Parameter |
|
|
User Interface |

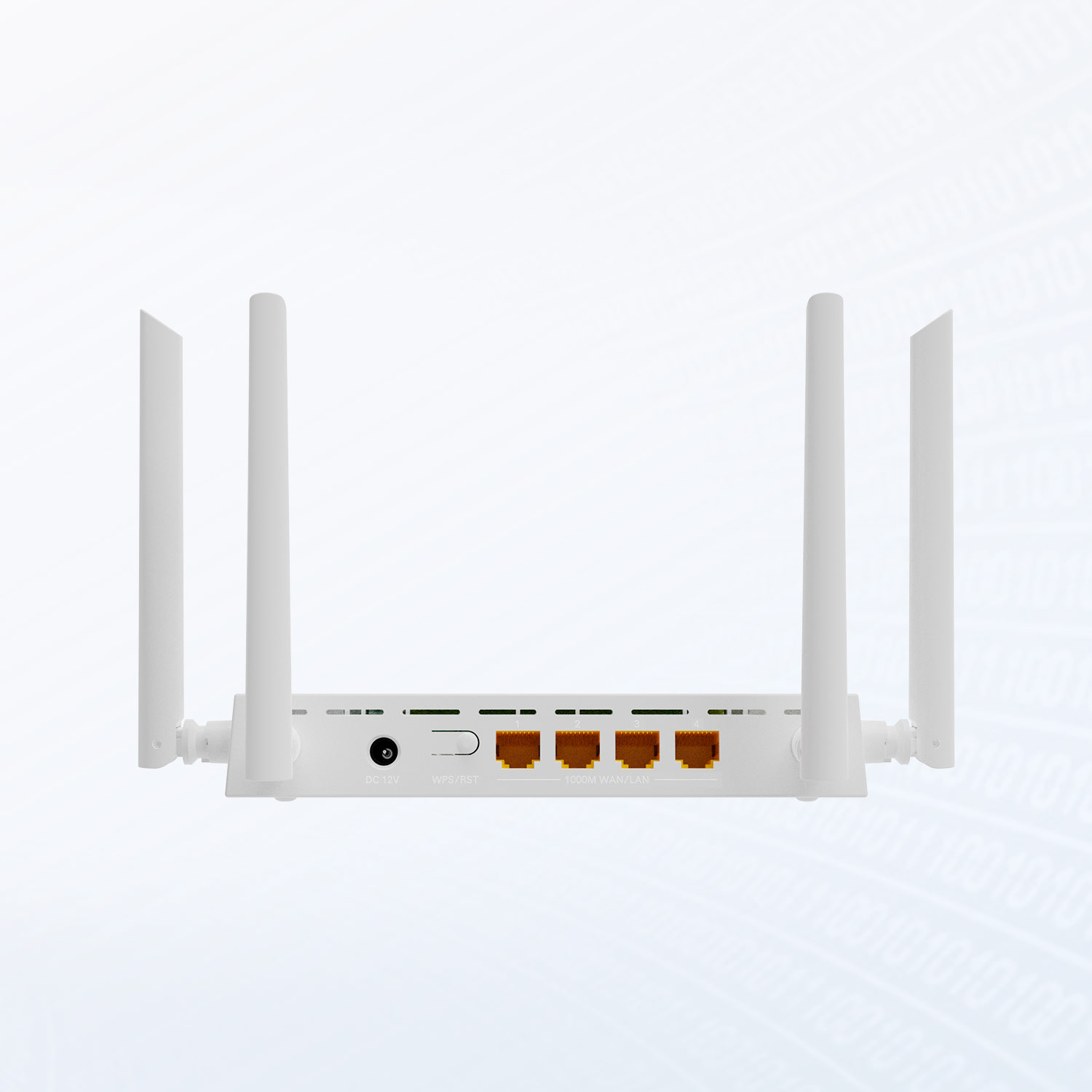

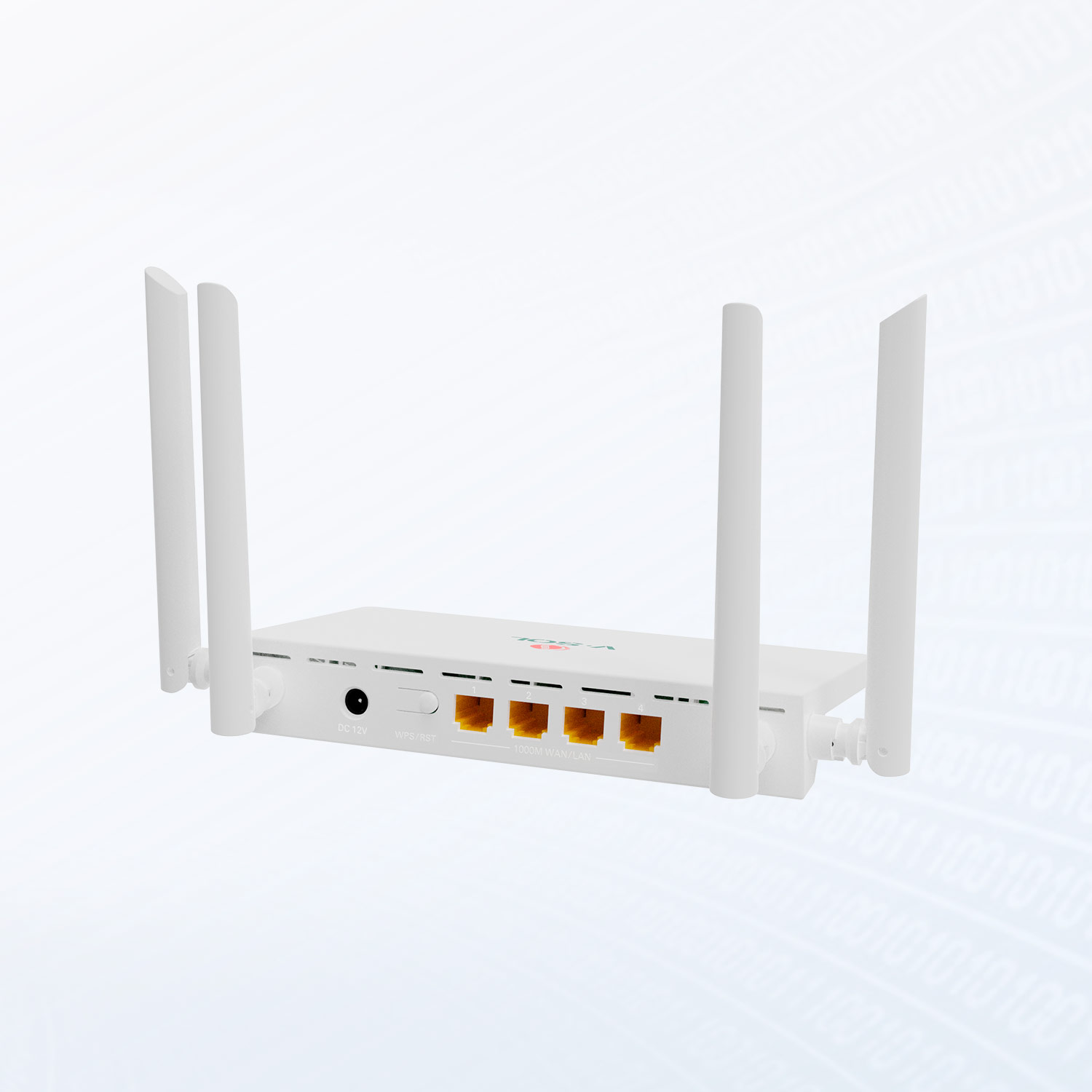

4*10/100/1000Mbps auto adaptive Ethernet interface, RJ45 connectors(1*WAN, 3*LAN) |
|
WLAN Interface |
Compliant with IEEE802.11b/g/n/ac/ax 2402 Mbps on 5GHz and 574Mbps on 2.4 GHz 2.4Ghz: 2*2(3dBi), 5GHz: 2*2(5dBi); External antennas Maximum number of connected devices: 128 |
|
Function Data |
|
|
Management |
WEB/Telnet/TR-069/SSH/CLI Management |
|
Multicast |
Support IGMP Snooping(IGMPv1/v2/v3) Support IGMP Proxy Support MLD Snooping(MLDv1、MLDv2) Support MLD Proxy Support Fast leave |
|
WAN |
Maximum speed of 1Gbps |
|
Wireless |
Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11b/g/n/ax 2.4GHz WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 Support MU-MIMO & OFDMA Support Dynamic QoS Support 1024-QAM Support WMM BSS-Coloring & Beamforming & Beamsteering Support WIFI Easy-mesh function |
|
L3 |
Support IPv4, IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route,NAT Support DMZ, ALG,UPnP Support Virtual Server Support NTP (Network Time Protocol) Support DNS Client and DNS Proxy |
|
DHCP |
Support DHCP Server & DHCP Relay |
|
Security |
Support local access control Support IP address filtering Support URL filtering Support Anti-DDoS attack function Support Anti-port scanning function Suppression of protocol-specific broadcast/multicast packets (e.g. DHCP, ARP, IGMP, etc.) Support Anti-Intranet ARP Attack Support Parental control function |
