CATV ONT нового поколения WiFi6(AX3000)

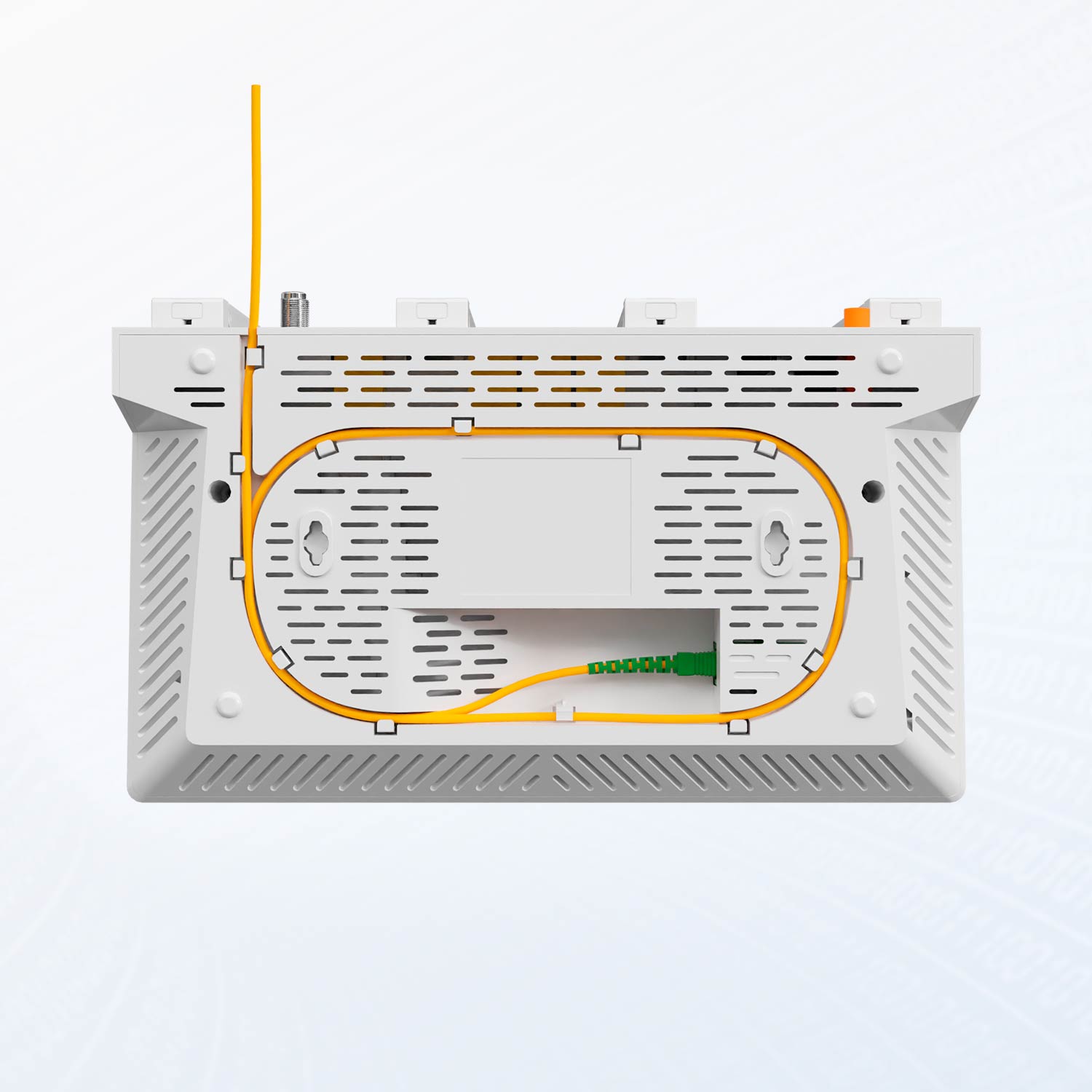

XPON Dual Mode | Экономичный WiFi6 (AX3000) | CATV с поддержкой AGC | Волоконно-оптическая структура с лотковым креплением
Почему V2804AX30(T)-A？
Разработан для удовлетворения потребностей операторов фиксированных сетей в услугах FTTH и triple-play.
Наслаждайтесь WiFi6 по лучшей цене
Уникальный дизайн, качественные детали
WiFi6+CATV для упрощения прокладки сети
|
○ Hardware Parameter |
|
|
Dimension |
260.4mm×157.4mm×45.8mm(L×W×H) |
|
Net weight |
0.55Kg |
|
Operating condition |
Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed) |
|
Storing condition |
Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) |
|
Power adapter |
12V/1.5A |
|
Power supply |
≤18W |
|

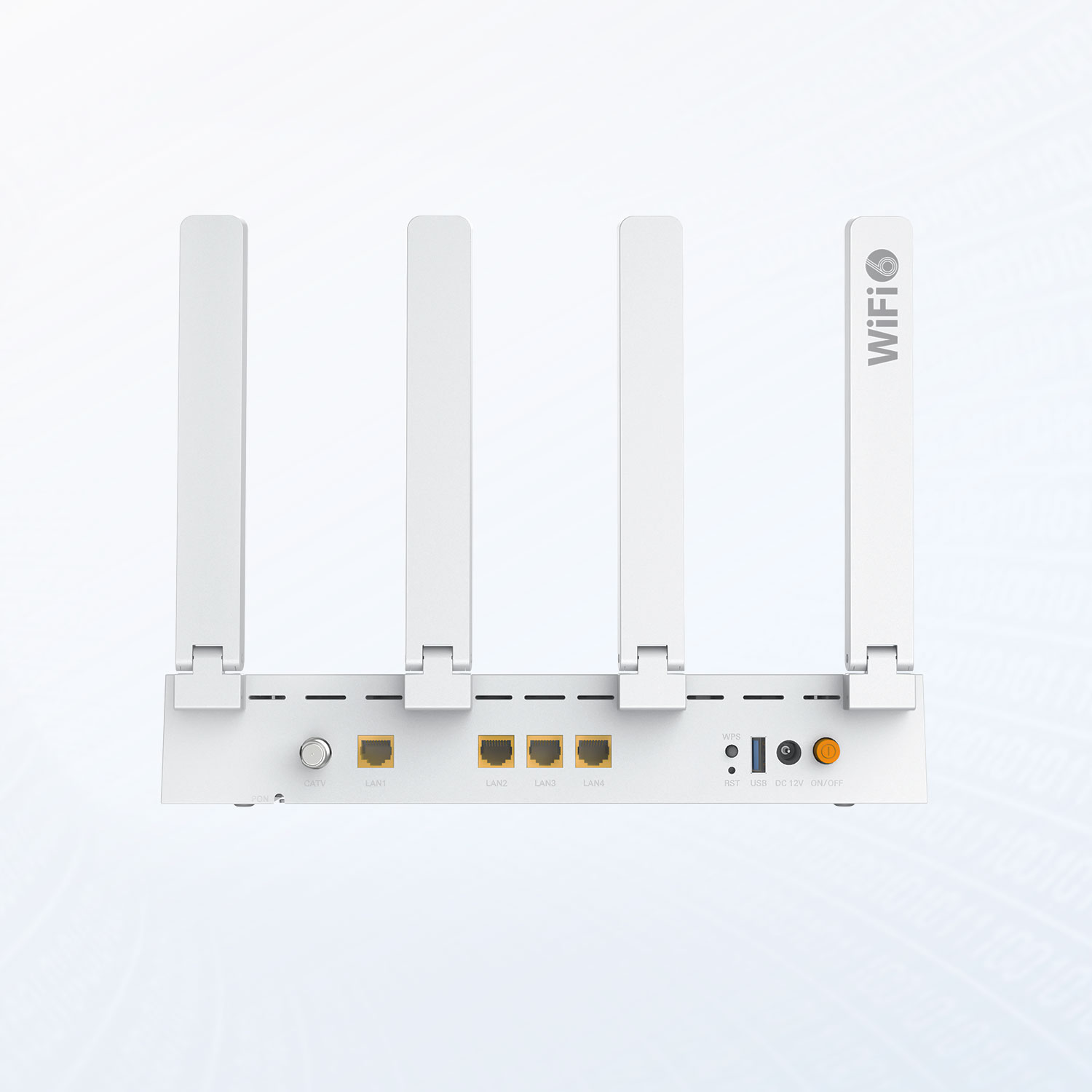

Interface |
1XPON+4GE+1USB3.0+CATV+WiFi6 |
|
Indicators |
PWR, PON, LOS, WAN, LAN1~4 ,2.4G ,5G, WPS, USB, CATV |
|
○ Interface parameter |
|
|
PON Interface |
1XPON port (EPON PX20+ and GPON Class B+) SC single mode, SC/APC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
|
User interface |
4×GE, Auto-negotiation, RJ45 ports |
|
Antenna |
2.4GHz 2T2R, 5GHz 3T3R |
|
CATV interface |
Optical receiving wavelength: 1550±10nm Optical input range: +2～-18dBm Optical reflection loss: ≥40dB RF frequency range: 47～1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1～-10dBm ≥79±2dBuv@ 0～-11dBm ≥77±2dBuv@-1～-12dBm ≥75±2dBuv@-2～-13dBm ≥73±2dBuv@-3～-14dBm ≥71±2dBuv@-4～-15dBm MER: ≥32dB (-14dBm optical input) |
|
○ Function Data |
|
|
O&M |
WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol |
|
Internet connection |
Support Routing Mode |
|
Multicast |
IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping |
|
WIFI |
WIFI6: 802.11a/n/ac/ax 5GHz, 2.4GHz WiFi: 2.4GHz 2×2, 5GHz 3×3, 5 antenna (4*External antenna,1*Internal antenna), rate up to 3Gbps, Multiple SSID WiFi Encryption: WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band |
|
L2 |
802.1p Cos,802.1Q VLAN |
|
L3 |
IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS |
|
Firewall |
Anti-DDOS, Filtering Based on ACL/MAC /URL |
