| Product introduction |

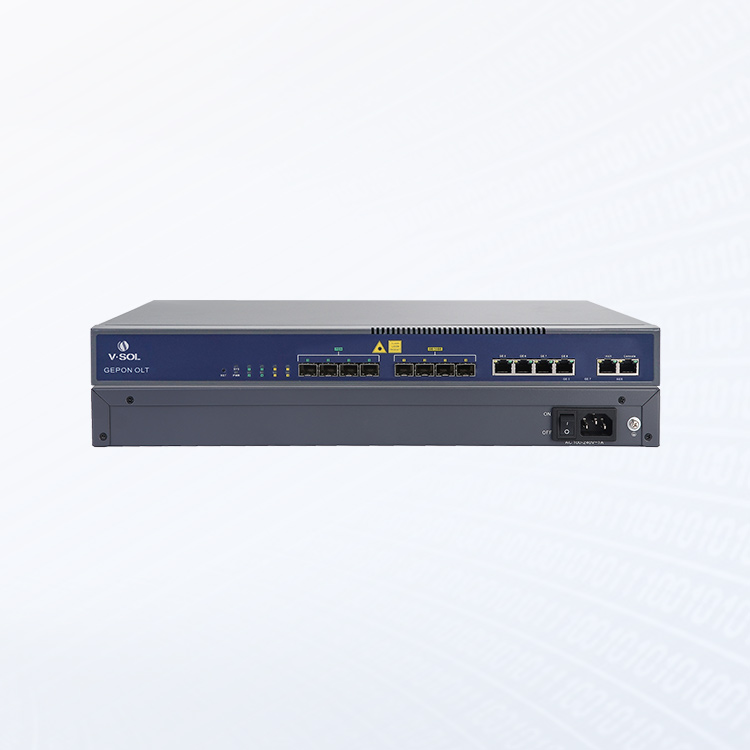

V-SOL V1600D4 is a 1U height 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy and high performance. It is appropriate to be deployed in compact room environment. The OLT can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and Internet service provider applications.
V1600D4 provides 4GE(copper) and 4*SFP/SFP+ slots independent interface for uplink, and 4*EPON OLT ports for downlink. It can support overall 256 ONU’s with 64 ONU’s per PON port.
| Technical Specifications |
| Item | V1600D4 | |
| Chassis | Rack | 1U 19 inch standard box |
| Uplink Port | QTY | 8 |
| RJ45 | 4 | |
| SFP/SFP+ | 4 | |
| EPON Port | QTY | 4 |
| Physical Interface | SFP Slots | |
| Max splitting ratio | 1:64 | |
| Supported PON module level | PX20, PX20+, PX20++, PX20+++ | |
| Backplane Bandwidth (Gbps) | 128 | |
| Port Forwarding Rate(Mpps) | 71.424 | |
| Dimension (LxWxH) | 442mm*200mm*43.6mm | |
| Weight | 3.2kg | |
| Power Supply | AC 100~240 V, 50/60 Hz | |
| Power Consumption | 30W | |
| Operating Environment | Working Temperature | -20~+60°C |
| Storage Temperature | -40~+70°C | |
| Relative Humidity | 5~95% (non-condensing) | |
