| Product introduction |

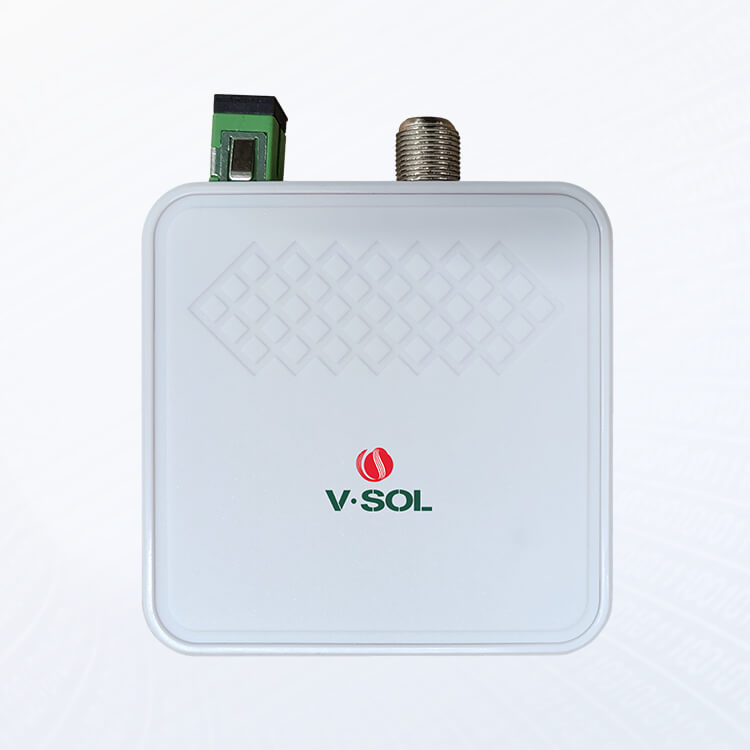

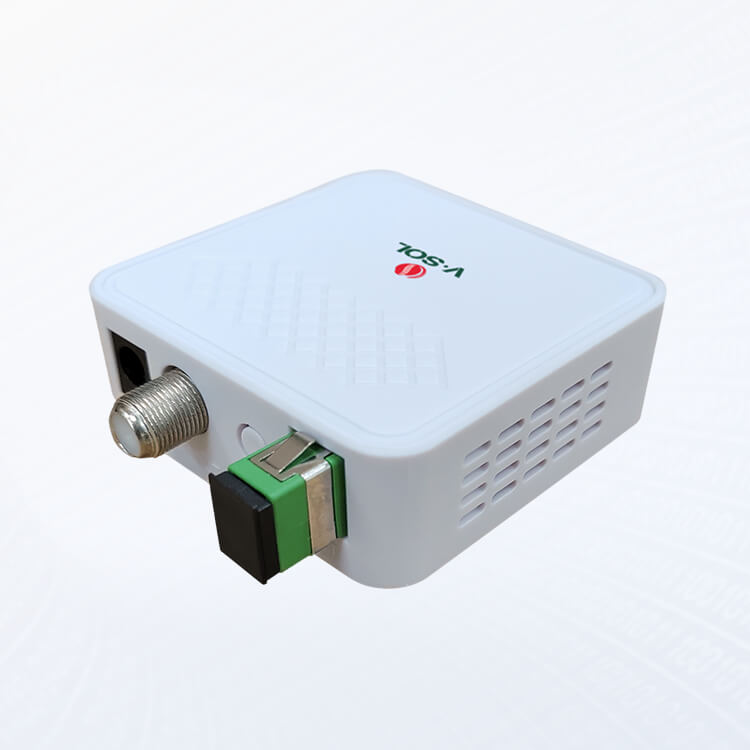

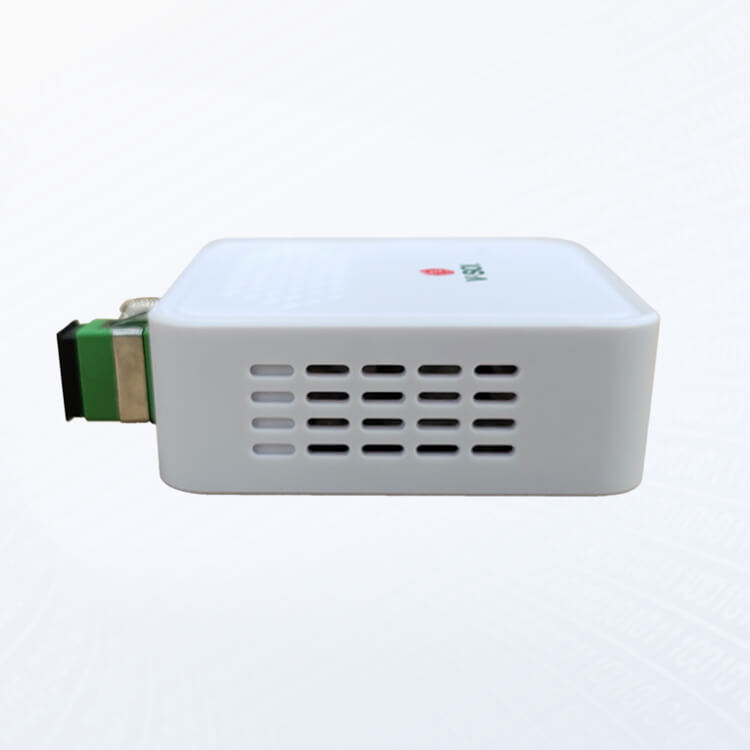

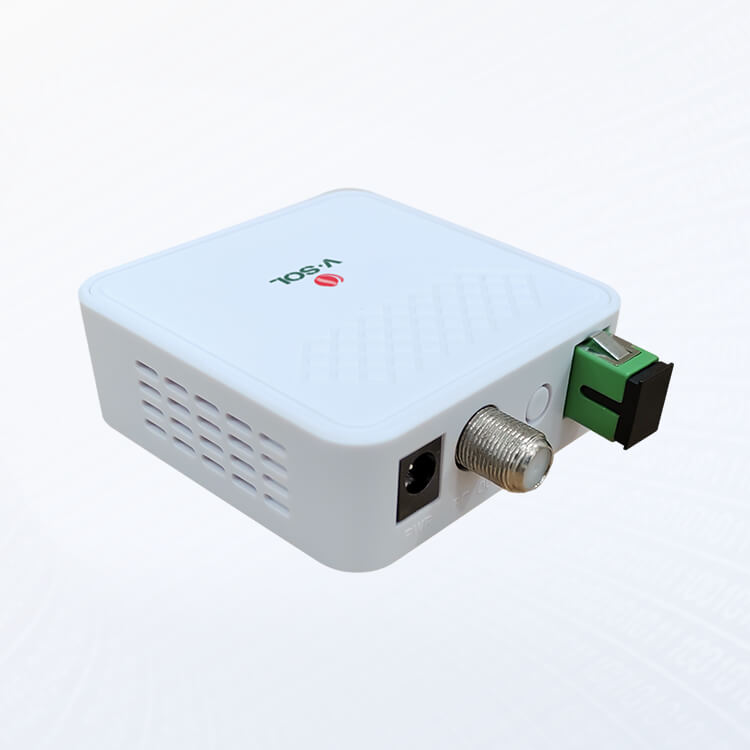

V8601H-1 FTTH Optical Receiver has high performance, lower receiver optical power and lower cost for CATV operators providing high quality and excellent FTTH network solution.
| Technical parameters |
| Description | value | Unit | Conditions / Notes |
| Wavelength | 1100～1600 | nm | |
| Optical Power Input Range | -20～-1 | dBm | Recommend -18 to -1 |
| Optical Input Return Loss | ≥45 | dB | |
| Bandwidth | 47～1003 | MHz | |
| Flatness | ±0.75 | dB | 47～1000MHz，At 25 ℃ |
| Slope | 0~1.0 | dB | 47～1000MHz，At 25 ℃ |
| Temperature Stability | ±1.0 | dB | In the operating tem range (-25 ~ +65 ℃) |
| Output Level | 78 | dBuV | -15dBm input optical power, per channel modulation 4.0%, in the 860MHz point test, at 25 ℃ |
| Impedance | 75 | Ohm | |
| Return Loss（47～1000MHz） | ≥14 | dB | At 25 ℃ |
| MER | ≥34 | dB | -15~-4dBm input optical power |
| Power | < 0.8 | W | |
| Operating Temperature | -25～65 | ℃ | |
| Storage Temperature | -40～70 | ℃ | |
| Storage Humidity | ≤95 | ％ | Non- condensation |
| Optical Connector Type | SC/APC | FC/ST Optional | |
| Power interface | DC12V/1A | External adapter | |
| RF Output Connector | F connector | 2 out optional | |
| Dimension | 74×64×27 | mm | |
| Net weight | 0.102 | kg | |
| Gross weight | 0.116 | kg |
