| Introduction |

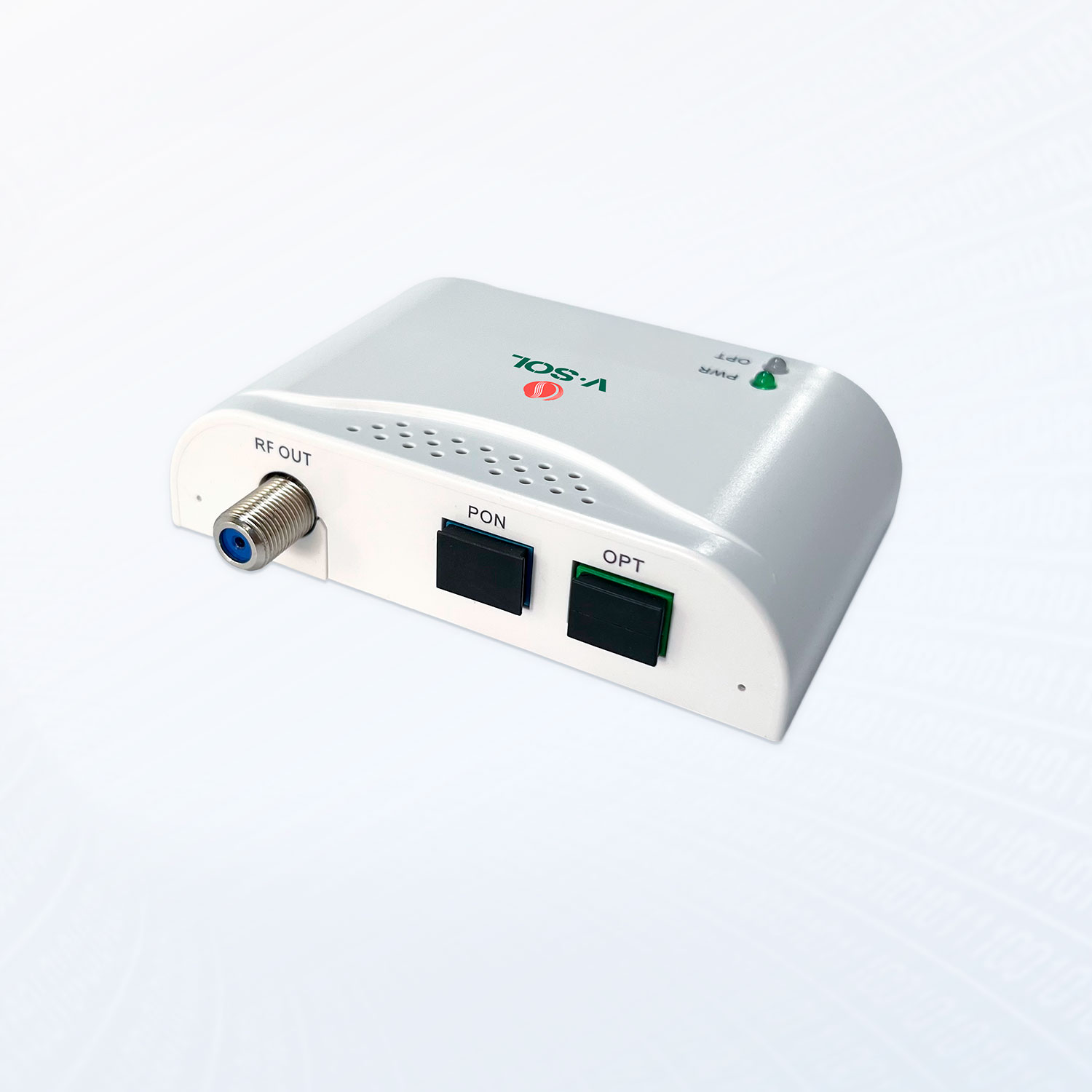

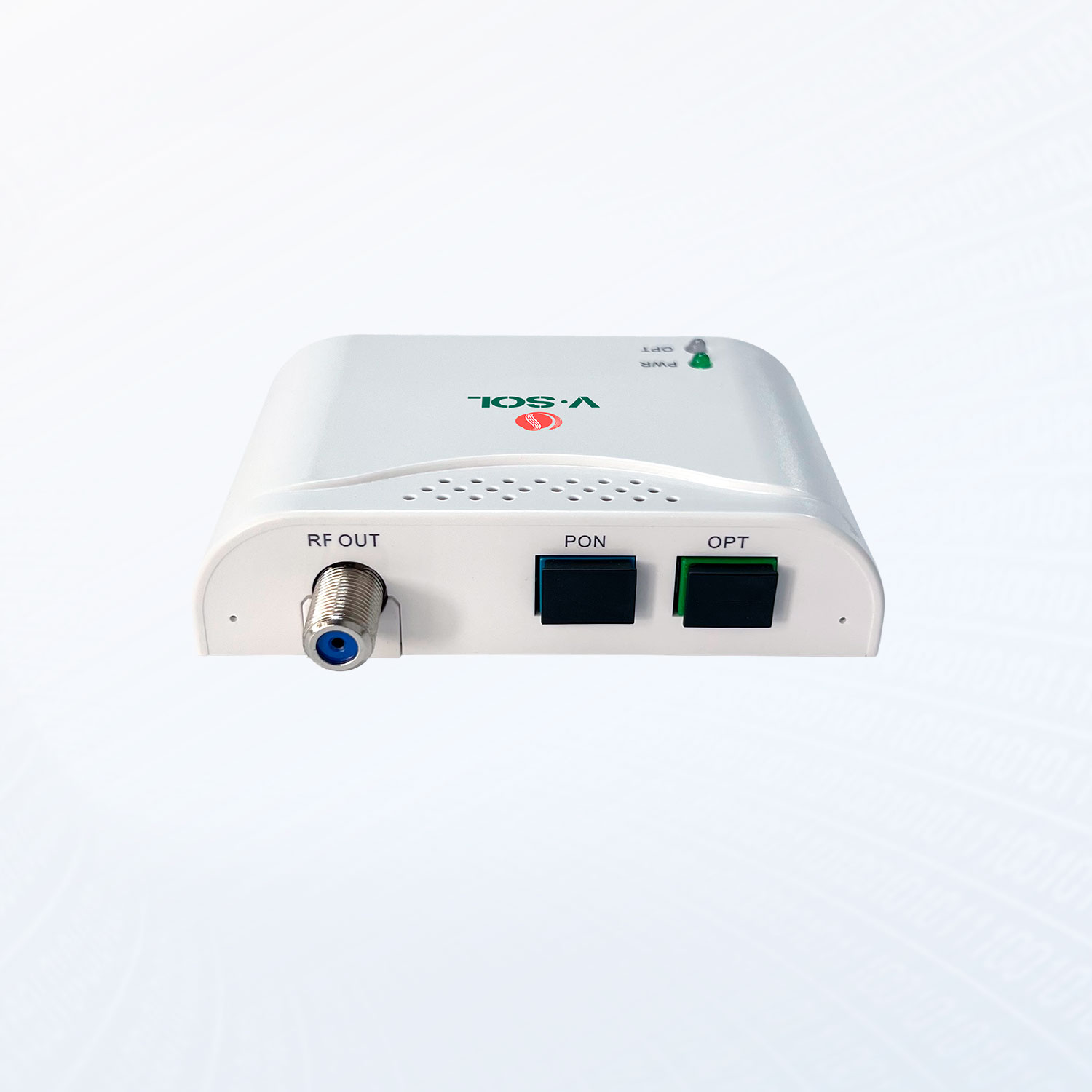

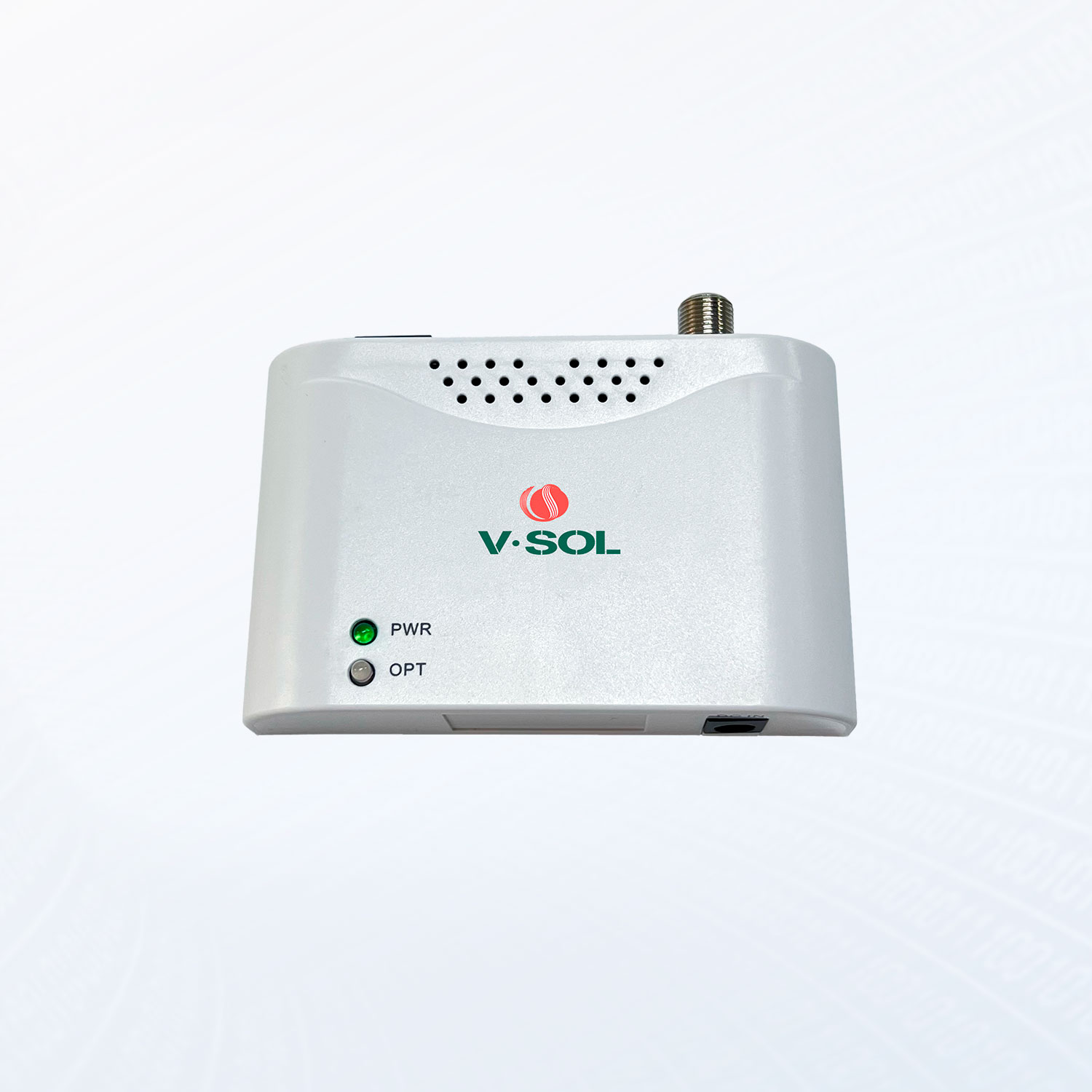

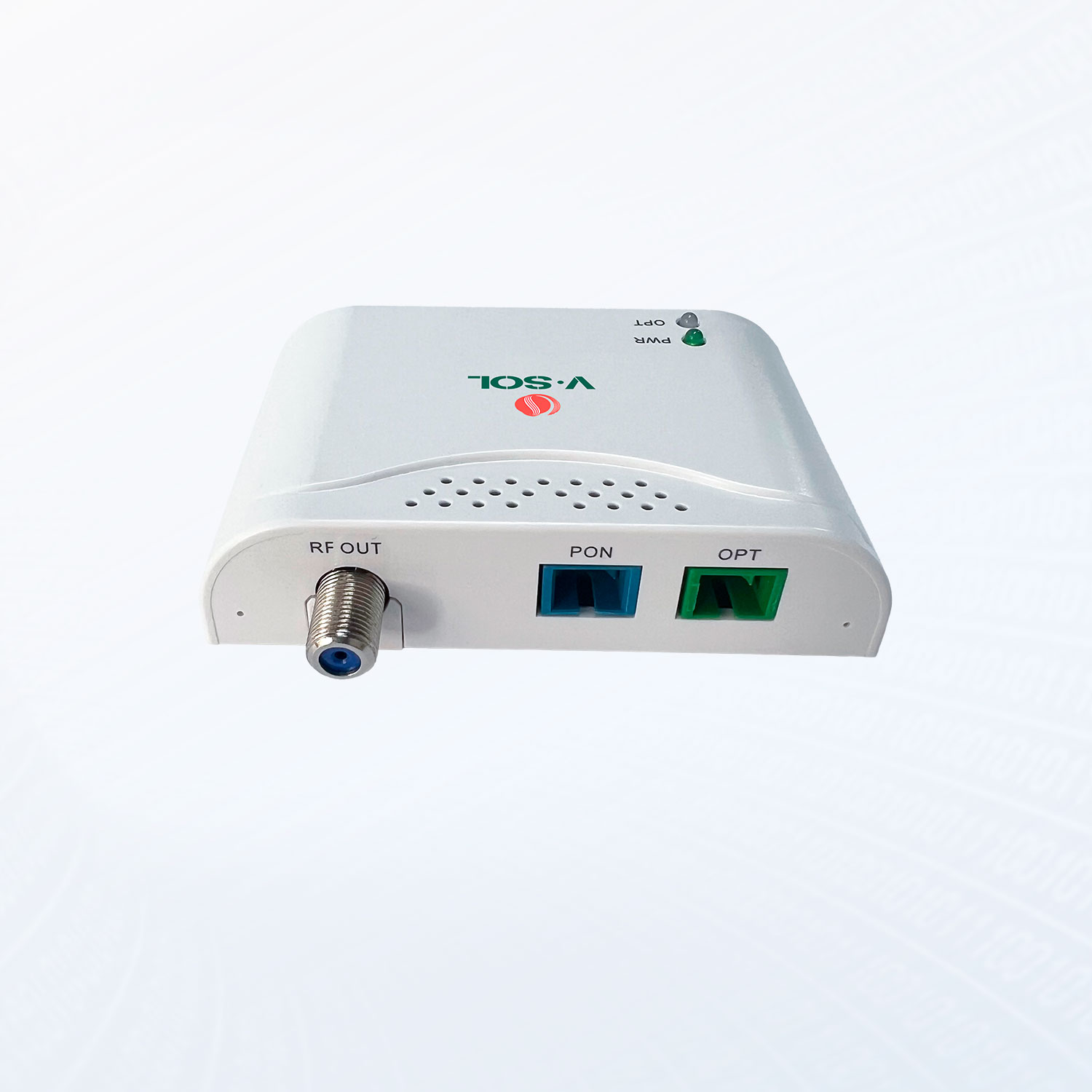

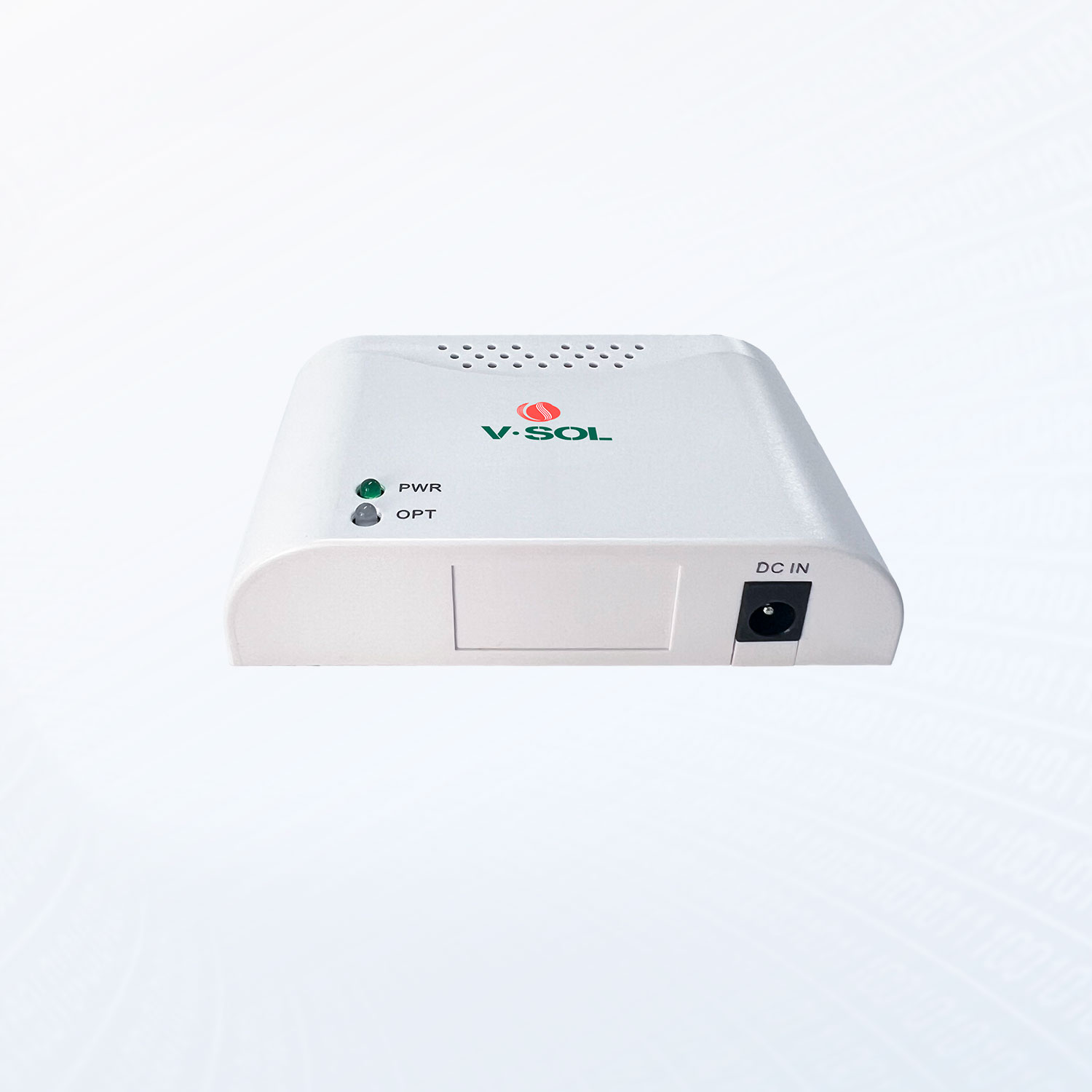

The VSOL V8801C-1 optical receiver is a compact optical unit with built-in WDM, designed for HFC broadband transmission networks. The device reflects PON optical signals through advanced photoelectric conversion technology and features AGC (Automatic Gain Control) to ensure that it always provides high-quality, low-noise signal transmission at different signal strengths. Its excellent frequency response and low distortion characteristics make it ideal for homes and small businesses to enjoy a stable, high-speed network experience.
| Features |
- 47MHz to 1003MHz frequency bandwidth, built-in WDM
- Built-in optical AGC control circuit to ensure stable output level
- Adopt high efficiency switching power adapter, wide voltage adaption range
- Ultra-low current, ultra-low power consumption
- Compatible with EPON, GPON, and 10G PON optical signals
| Technical Specifications |
|
No. |
Item |
Technical Parameters |
note |
|
1 |
CATV Receiving Optical Wavelength |
1550±10nm |
|
|
2 |
PON Received Wavelength |
1310nm/1490nm |
XPON |
|
1270nm/1577nm |
10G PON |
||
|
3 |
Channel Isolation |
>20dB |
|
|
4 |
Optical reception responsiveness |
0.85A/W(1550nm typical) |
|
|
5 |
Input Optical Power Range |
–20dBm~+2dBm |
|
|
6 |
Fiber Optic Types |
Single mode(9/125mm) |
|
|
7 |
Fiber Optic Connector Type |
SC/APC |
|
|
8 |
Output Level |
≥78dBuV |
|
|
9 |
AGC Range |
–15dBm~+2dBm |
Output level ±2dB |
|
10 |
F-type RF connector |
fractional |
|
|
11 |
Frequency Bandwidth |
47MHz-1003MHz |
|
|
12 |
RF In-Band Flatness |
±1.5dB |
|
|
13 |
System impedance |
75Ω |
|
|
14 |
Reflection Loss |
≥14dB |
|
|
15 |
MER |
≥35dB |
|
|
16 |
BER |
＜10-8 |
|
|
17 |
Product Size |
95mm(L)×71mm(W)×25mm(H) |
|
|
18 |
Product weight |
75g |
|
|
19 |
Work conditions |
Temperature: 0℃–+45℃ Humidity: 40%–70% (non-condensing) |
|
|
20 |
Storage conditions |
Temperature: -25℃–+60℃ Humidity: 40%–95% (non-condensing) |
|
| Performance Description |
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Test Conditions |
|
Transmission Working Wavelength |
λ1 |
1540 |
1550 |
1560 |
nm |
|
|
Reflected Working Wavelength |
λ2 |
1260 |
1310 |
1330 |
nm |
|
|
λ3 |
1480 |
1490 |
1500 |
nm |
|
|
|
λ4 |
1575 |
1577 |
1650 |
nm |
|
|
|
Degree of Response |
R |
0.85 |
0.90 |
|
A/W |
po=0dBmλ=1550nm |
|
Transmission isolation |
ISO1 |
30 |
|
|
dB |
λ=1310&1490&1577nm |
|
Reflection isolation |
ISO2 |
18 |
|
|
dB |
λ=1550nm |
|
Return Loss |
RL |
–40 |
|
|
dB |
λ=1550nm |
|
Insertion Loss |
IL |
|
|
1 |
dB |
λ=1310&1490&1577nm |
